Basic Info.
| Parts no. | 0860523 | Material | Steel |
| Type | Pin | Parts Type | Engineering machinery parts |
| Compatibility | Caterpillar | Transport Package | Wooden box |
| Trademark | DIRON | Origin | Luoyang City |
| HS Code | 84099991 | Production Capacity | 5000PCS/Year |
Product Details
- Date First Listed：2025/12/06
- Manufacturer：Diron Parts
Product Description
- Part Type：Pin

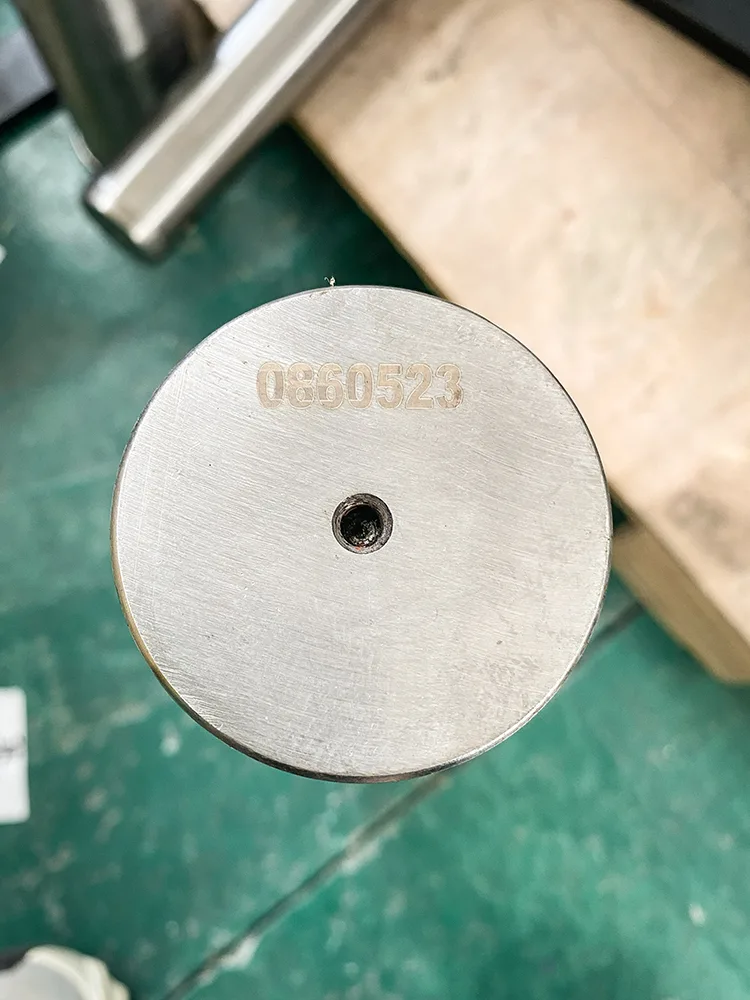

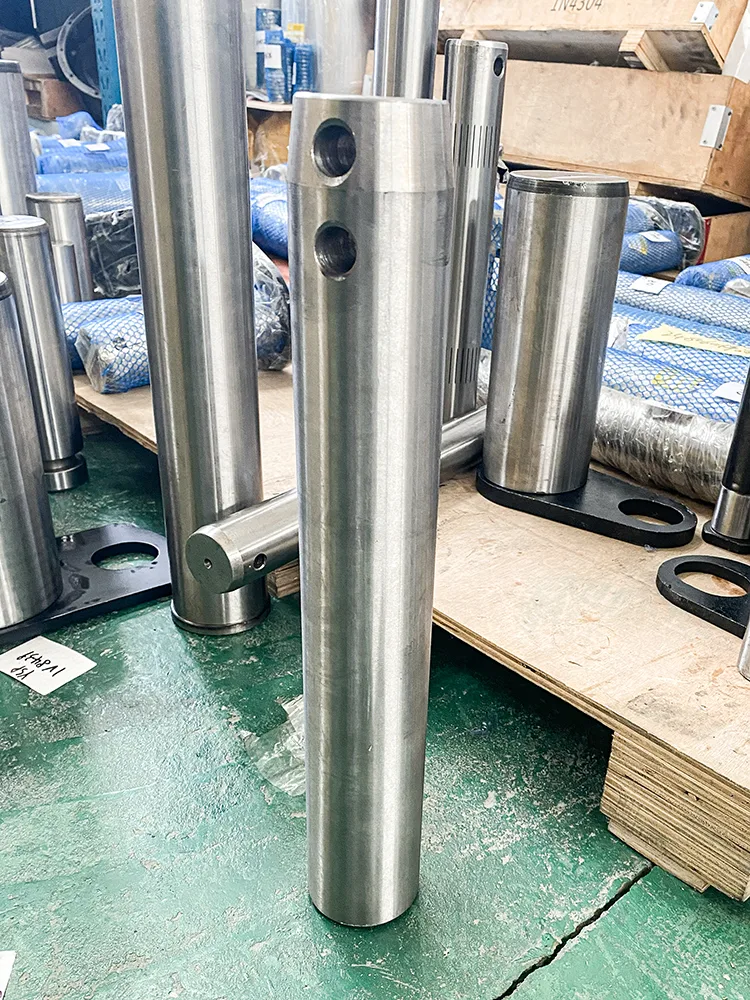

- escription: Replacement Parts Pin 0860523 Suitable for Caterpillar, New
The 086-0523 is a high-load aftermarket bucket-to-H-link (power-link) pivot pin engineered for popular 20–25 ton Caterpillar® hydraulic excavators. Forged from premium 40Cr alloy steel and deep induction-hardened across all bearing surfaces, this pin withstands extreme bucket curl forces, shock loads, and continuous articulation in heavy digging, trenching, and loading operations.
Key Features & Benefits
- Forged 40Cr alloy steel with case hardness > HRC 56 (depth 8–12 mm)
- Thick hard-chrome plating option available for outstanding wear and corrosion resistance
- Precision-ground diameters to ±0.02 mm tolerance for perfect bushing contact
- Spiral grease grooves + cross-drilled lubrication channels for easy maintenance
- Exceptional shear and bending strength – proven under maximum breakout force
- Shot-blasted and anti-corrosion coated finish
Common Applications (Caterpillar® Compatibility)
- Hydraulic Excavators – bucket to H-link / power-link pivot: – 320B, 320BL, 320C, 320CL, 320D, 320DL – 321B, 321C, 321D LCR – 318B, 318C, 319D – 322B, 322BL, 322C (some configurations)
- One of the highest-stress pins in the bucket linkage of these best-selling 20–25 ton machines
- Frequently replaced during 10,000–15,000 hour front-end rebuilds
Technical Specifications
- Part Number Reference: 086-0523
- Material: Forged & heat-treated alloy steel
- Outside Diameter: 79.98 mm (3.149 in)
- Overall Length: ≈ 493 mm
- Weight: ≈ 24–26 kg (53–57 lb)
- Quantity per machine: 1
Important Note:
- We only provide replacement products intended for aftermarket use in the Caterpillar machinery listed above. The brand name Caterpillar is used solely as reference information to indicate compatibility and does not imply that our products are OEM.
- Note: While this description provides general information, specific details such as size, weight and exact material may vary by manufacturer and specific application. To obtain the most accurate and up-to-date information, it is recommended to consult a qualified parts supplier such as DIRON PARTS.
