Basic Info.
| Part no. | 110-5095 7W0007 | Material | Iron |
| Type | Cylinder Head | Weight | 116KG |
| Engine No. | 3406 C | Transport Package | Wooden Box |
| Trademark | DIRON | Origin | Luoyang City |
| HS Code | 84099991 | Production Capacity | 5000PCS/Year |
Product Details
- Item Model：110-5095 7W0007
- Date First Listed：2024/11/21
- Manufacturer：Diron Parts
Product Description
- Part Number：Cylinder Head 110-5095 7W0007
- Part Type：Cylinder Head assy
- Compatible Equipment：Replacement Caterpillar Parts cylinder head 110-5095 7W0007 for Diesel Engine 3406 C

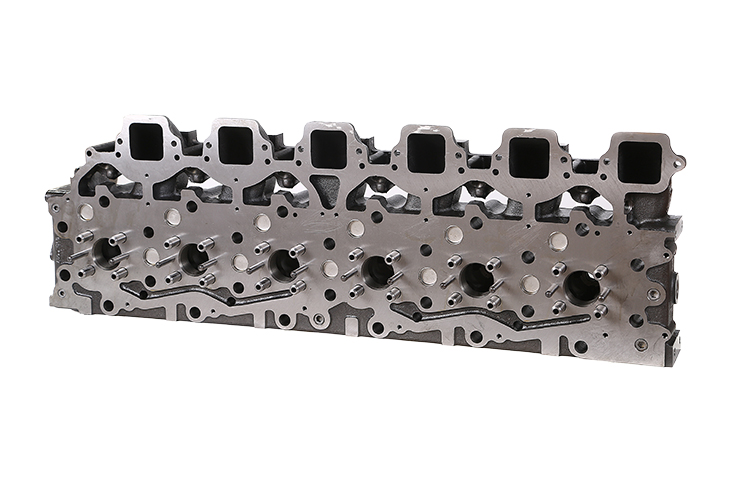

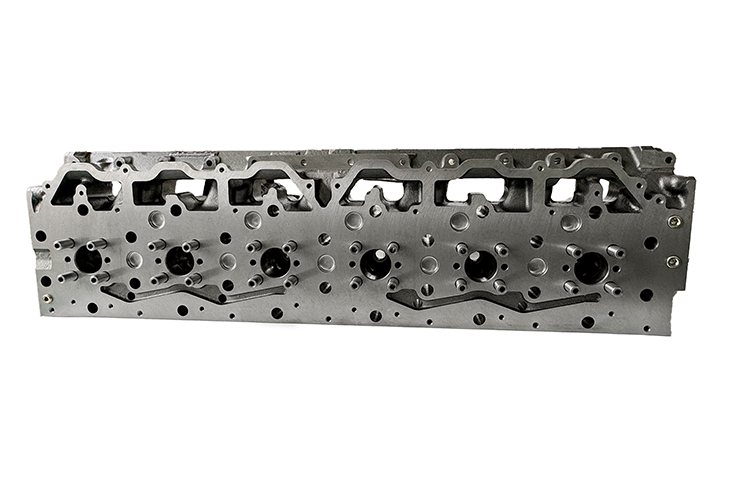

Product Introduction: Cylinder Heads 110-5095 and 7W0007 for Caterpillar 3406C Diesel Engine
Overview
The Cylinder Heads 110-5095 and 7W0007 are precision-engineered components designed for the Caterpillar 3406C diesel engine, essential for sealing the combustion chamber, housing the valves, and facilitating efficient airflow and fuel combustion. These parts are critical for maintaining engine performance and reliability in heavy-duty applications, including trucks, industrial engines, and construction equipment. Available as new aftermarket, remanufactured, or genuine OEM parts, they provide robust solutions for engine maintenance.
Key Features
- Material: Constructed from high-grade cast iron, engineered to withstand extreme temperatures, pressures, and mechanical stresses in the 3406C engine. Features precision-machined surfaces for optimal sealing, heat dissipation, and durability.
- Design: Built to OEM specifications for precise fitment and performance. Includes valve seats, guides, and ports optimized for efficient combustion and exhaust flow. Available as bare heads (with valve guides and seats) or loaded assemblies with pre-installed valves, springs, premium valve stem seals, retainers, and injector cups. Incorporates advanced cooling passages to manage engine temperature effectively.
- Compatibility: Compatible with Caterpillar 3406C diesel engines, used in:
- Trucks: Heavy-duty on-highway trucks, such as Freightliner FLD120, Kenworth T800, Peterbilt 379, and International models (late 1980s-1990s).
- Industrial Engines: 3406C, deployed in generator sets, pumps, and compressors.
- Construction Equipment: Articulated dump trucks (D400, D40D), wheel loaders (980C, 980F), track-type tractors (D8N, D8R), wheel tractor-scrapers (627E, 627F, 623F), motor graders (16G, 16H), and pipelayers (578).
- Engines: 3406C (inline 6-cylinder, 14.6L, 2-valve per cylinder configuration, mechanically controlled with precombustion chamber), with specific serial numbers (e.g., 3ER, 4CK, 1LS, 5DS, 8PN). Exact compatibility must be verified using the engine’s serial number via CAT SIS, as per Caterpillar’s policy.
- Cross-References:
- 110-5095: 1105095, 110-5095, CA1105095, 1105096, 1105097, 1105099, 7N1303, 7W0006, 7W0007, 7W0009, 7W0010, 7W2200, 7W2202, 7W2203, 0R0977, 0R1445, 0R3673, 0R3676, 0R3719.
- 7W0007: 7W-0007, CA7W0007, 1105095, 1105096, 1105097, 1105099, 7N1303, 7W0006, 7W0009, 7W0010, 7W2200, 7W2202, 7W2203, 0R0977, 0R1445, 0R3673, 0R3676, 0R3719.
- Both part numbers are interchangeable with heads for 3406A, 3406B, and 3406C models, sharing casting numbers like 1105096 and 1105097 (from prior queries).
- Dimensions: Approximate dimensions are 1028.7 mm (length), 393.7 mm (width), and 292.1 mm (height), based on supplier data for 3406 heads. Typical bare cylinder heads weigh approximately 200-250 lbs (91-113 kg), with loaded assemblies heavier due to pre-installed components.
- Quality Assurance: Manufactured or remanufactured in ISO 9001:2015-certified facilities, meeting or exceeding Caterpillar OEM specifications. Subject to rigorous inspection, including pressure and vacuum testing, magnaflux testing for cracks, and surface grinding for flatness. Supplied with new valve guides, valve seats, and, for loaded heads, fully assembled with valves, springs, retainers, and valve locks.
Benefits
- Enhanced Durability: High-grade cast iron construction ensures resistance to thermal stress, warping, and wear, extending service life in demanding trucking, construction, and industrial applications.
- Reliable Performance: Optimizes combustion efficiency, airflow, and valve operation, maintaining the 3406C engine’s power output (350-460 hp for trucks, up to 500 hp for industrial) and fuel efficiency, critical for heavy-duty operations.
- Cost-Effective: Offers high-quality aftermarket or remanufactured options, reducing maintenance costs compared to replacing entire engine assemblies. No core charge typically required for new parts, though remanufactured parts may involve a core deposit (e.g., $1,000-$1,500).
- Ease of Installation: Engineered as a direct-fit replacement, with loaded assemblies including pre-installed components to simplify installation, minimizing downtime. Bare heads require valve seat grinding to fit specific valves. Professional installation by ASE-certified technicians is recommended due to precise torque requirements.
Applications
The Cylinder Heads 110-5095 and 7W0007 are designed for Caterpillar 3406C diesel engines, suited for:
- Trucks: Heavy-duty on-highway vehicles, including long-haul trucks, dump trucks, and logging trucks.
- Industrial Engines: 3406C, for generator sets, pumps, and compressors in industrial settings.
- Construction Equipment: Articulated dump trucks (D400, D40D), wheel loaders (980C, 980F), track-type tractors (D8N, D8R), wheel tractor-scrapers (627E, 627F, 623F), motor graders (16G, 16H), and pipelayers (578).
- Industries: Transportation, construction, mining, agriculture, oil and gas, and power generation, where 3406C engines are deployed for high-performance, continuous-duty tasks.
Technical Specifications
- Part Number:
- 110-5095 (cross-referenced as 1105095, 110-5095, CA1105095, 1105096, 1105097, 1105099, 7W0006, 7W0007, 7W0009, 7W2203, 0R0977, 0R3673).
- 7W0007 (cross-referenced as 7W-0007, CA7W0007, 1105095, 1105096, 1105097, 1105099, 7W0006, 7W0009, 7W2203, 0R0977, 0R3673).
- Unit of Measure: Each.
- Condition: New aftermarket, remanufactured, or genuine OEM.
- Weight: Approximately 200-250 lbs (91-113 kg) for bare heads, based on 3406 heads (e.g., 1105096).
