Basic Info.
| Parts No. | 1175435 | Material | Steel |
| Type | Pin | Parts Type | Engineering machinery parts |
| Compatibility | Caterpillar | Transport Package | Wooden box |
| Trademark | DIRON | Origin | Luoyang City |
| HS Code | 84099991 | Production Capacity | 5000PCS/Year |
Product Details
- Date First Listed：2025/12/06
- Manufacturer：Diron Parts
Product Description
- Parts Type：Pin

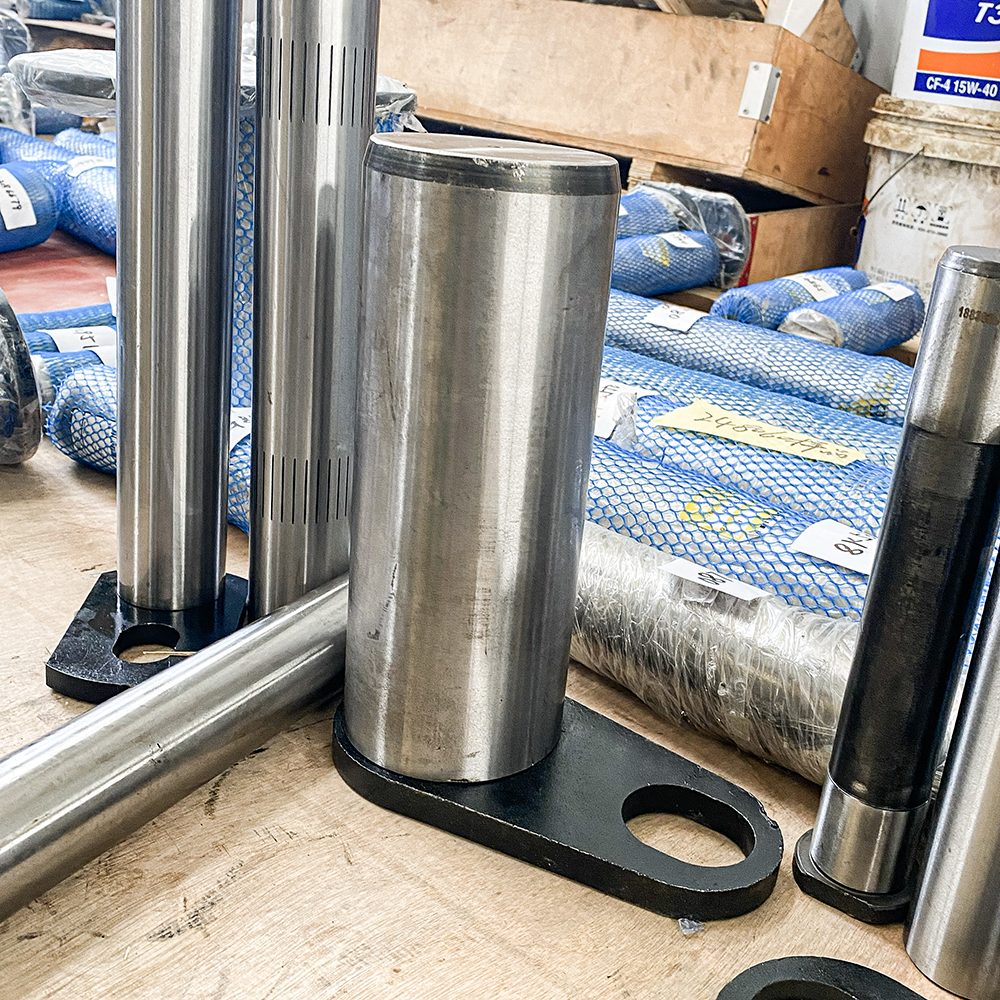

- escription: Replacement Parts Pin 1175435 Suitable for Caterpillar, New
The 117-5435 is a high-strength aftermarket stick-to-bucket main pivot pin engineered for Caterpillar® 30–36 ton hydraulic excavators. Forged from premium 40Cr alloy steel and deep induction-hardened on all bearing surfaces, this pin is built to absorb extreme digging forces, repeated shock loads, and continuous articulation in heavy quarry, mass-excavation, and demolition applications.
Key Features & Benefits
- Forged 40Cr alloy steel with case hardness > HRC 56 (depth 10–12 mm)
- Optional thick hard-chrome plating for superior wear and corrosion protection
- Precision-ground diameters to ±0.02 mm tolerance for perfect bushing fit
- Spiral grease grooves + cross-drilled lubrication passages for easy servicing
- Outstanding shear and bending resistance – proven under maximum bucket curl forces
- Shot-blasted and anti-corrosion coated surface
Common Applications (Caterpillar® Compatibility)
- Hydraulic Excavators – stick (dipper arm) to bucket main pivot: – 330B, 330BL – 330C, 330CL – 345B, 345B L, 345C, 345C L (some configurations)
- One of the most heavily loaded pins in the entire front linkage of these popular 33–36 ton machines
- Frequently replaced during major linkage rebuilds and bucket changes
Technical Specifications

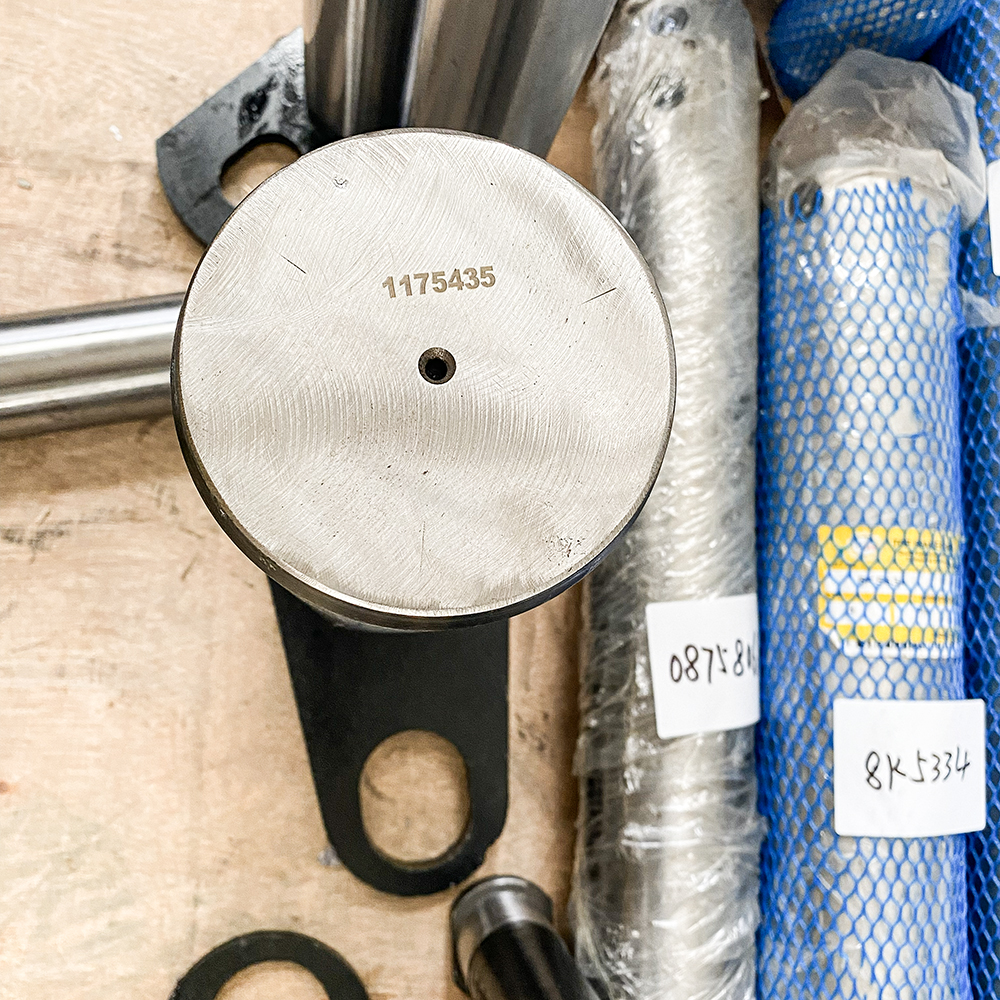

- Part Number Reference: 117-5435
- Material: Forged & heat-treated alloy steel
- Outside Diameter: 99.98 mm (3.936 in)
- Overall Length: ≈ 480–500 mm (varies slightly by model)
- Weight: ≈ 68–74 kg (150–163 lb)
- Quantity per machine: 1
Important Note:
- We only provide replacement products intended for aftermarket use in the Caterpillar machinery listed above. The brand name Caterpillar is used solely as reference information to indicate compatibility and does not imply that our products are OEM.
- Note: While this description provides general information, specific details such as size, weight and exact material may vary by manufacturer and specific application. To obtain the most accurate and up-to-date information, it is recommended to consult a qualified parts supplier such as DIRON PARTS.
