Basic Info.
| Parts no. | 2662337 | Material | steel |
| Type | Sensor GP-POSITION | Weight: | ≈ 0.45 kg |
| Compatibility | Caterpillar | Transport Package | Wooden box |
| Trademark | DIRON | Origin | Luoyang City |
| HS Code | 84099991 | Production Capacity | 5000PCS/Year |
Product Details
- Item Model：2662337
- Date First Listed：2025/12/08
- Manufacturer：DIRON
Product Description
- Part Number: 2662337

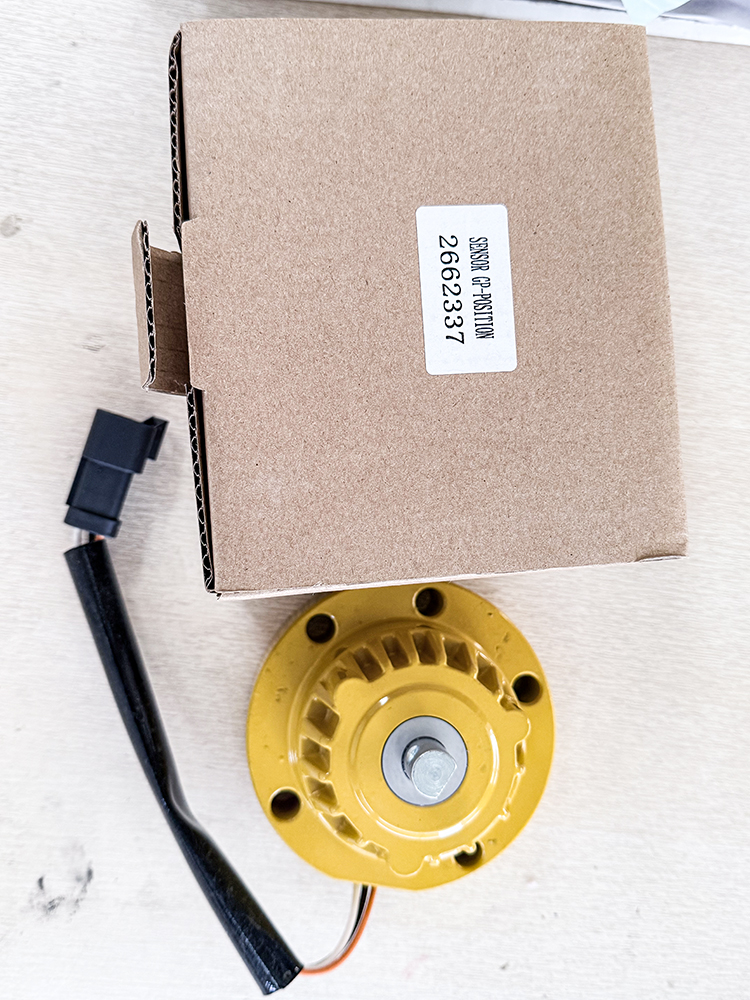

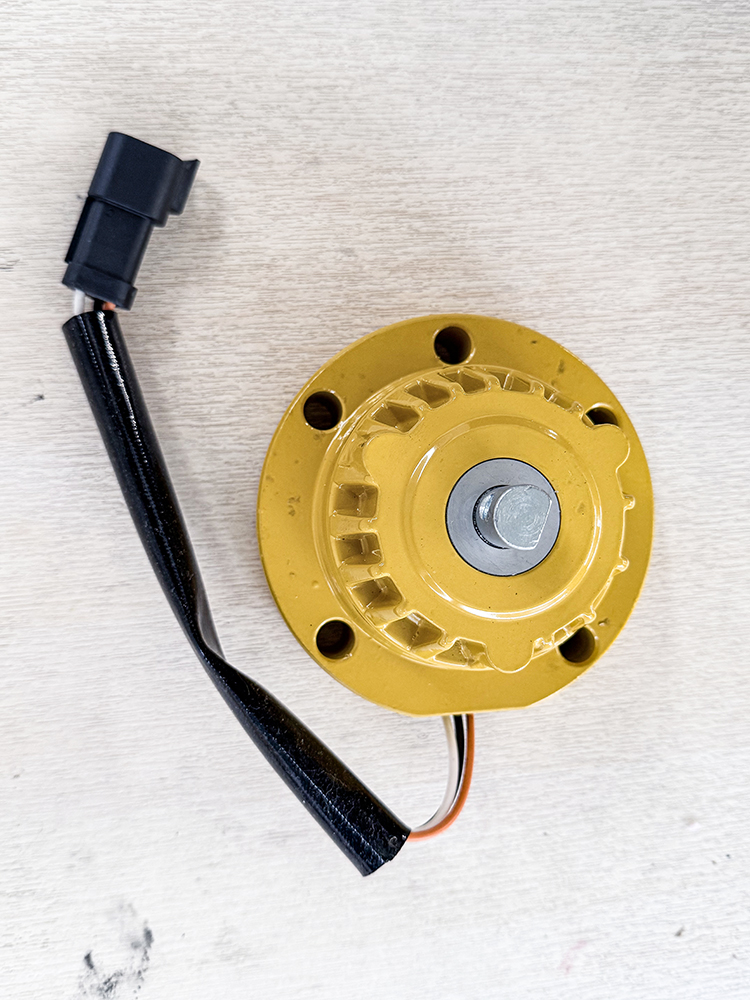

- Part Type：Sensor GP-POSITION 2662337
- Description: Caterpillar
The 266-2337 is a high-precision aftermarket rotary position sensor (implement lever / joystick position sensor) engineered for Caterpillar® medium and large hydraulic excavators and wheel loaders. This robust hall-effect sensor accurately monitors joystick and pilot-control lever position, providing smooth, proportional hydraulic response for boom, stick, bucket, and swing functions.
Key Features & Benefits
- True non-contact hall-effect technology – zero wear, > 20 million cycle life
- Full 0.5–4.5 V ratiometric output with factory-matched angle curve
- IP68 sealed aluminum housing + Deutsch DT04-3P connector
- Temperature-compensated circuitry (±0.5 % accuracy from –40 °C to +125 °C)
- Built-in over-voltage, reverse-polarity, and EMI protection
- Precision stainless-steel shaft and dual-sealed bearings
- Direct bolt-on mounting pattern and lever spline identical to OEM
Common Applications (Caterpillar® Compatibility)
- Hydraulic Excavators: – 320D, 321D, 323D, 324D, 325D, 329D, 330D – 336D, 345C, 345D, 349D, 365C, 385C
- Wheel Loaders: 950H, 962H, 966H, 972H, 980H, 988H
- Primary use: Joystick base position sensing (pilot control hydraulic proportional valves)
Technical Specifications
- Part Number Reference: 266-2337
- Output Signal: 0.5–4.5 VDC (ratiometric)
- Supply Voltage: 9–32 VDC
- Rotation Angle: ±35° typical (70° total travel)
- Connector: Deutsch DT04-3P
- Operating Temperature: –40 °C to +125 °C
- Weight: ≈ 0.45 kg
Important Note:
- We only provide replacement products intended for aftermarket use in the Caterpillar machinery listed above. The brand name Caterpillar is used solely as reference information to indicate compatibility and does not imply that our products are OEM.
- Note: While this description provides general information, specific details such as size, weight and exact material may vary by manufacturer and specific application. To obtain the most accurate and up-to-date information, it is recommended to consult a qualified parts supplier such as DIRON PARTS.
