Basic Info.
| Part no. | 2K6413 &3B5325 | Material | steel |
| Type | Pin Set | Part Type | Engineering machinery parts |
| Compatibility | Caterpillar | Transport Package | Wooden box |
| Trademark | DIRON | Origin | Luoyang City |
| HS Code | 84099991 | Production Capacity | 5000PCS/Year |
Product Details
- Date First Listed：2025/05/21
- Manufacturer：Diron Parts
Product Description
- Part Type：Pin Set
- Description: suitable for Caterpillar

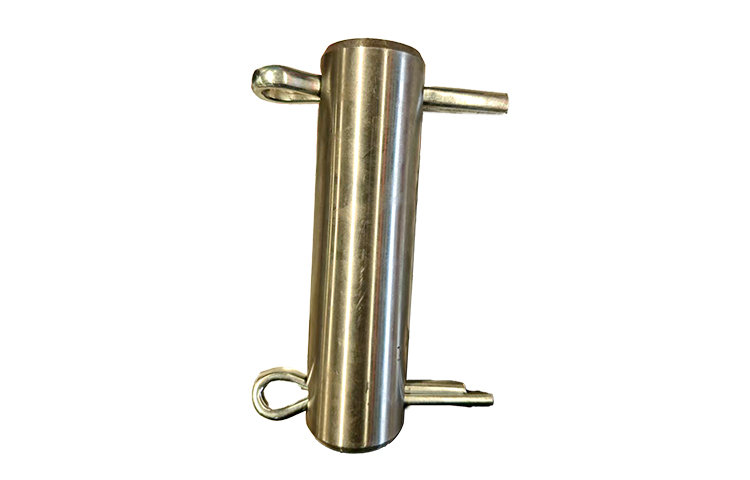

Product Introduction: Pin Set 2K6413 & 3B5325 for Caterpillar Equipment
Overview
The Pin Set consisting of part numbers 2K6413 (pin) and 3B5325 (cotter pins) is designed for Caterpillar equipment, specifically used to secure ripper tooth tips, such as the 6Y0309 ripper tooth, in ripper assemblies. This set is critical for ensuring the reliable attachment of ground-engaging tools in demanding applications like ripping and earthmoving. Available as new aftermarket or genuine OEM parts, the set offers a cost-effective and durable solution for equipment maintenance.
Key Features
- Material:
- 2K6413 Pin: Constructed from high-grade steel, designed to withstand high shear forces, resist wear, and endure harsh operating conditions. Features a robust design for secure retention of ripper teeth.
- 3B5325 Cotter Pins: Made from durable steel, designed to lock the 2K6413 pin in place, preventing movement during operation. Zinc or corrosion-resistant coating enhances durability.
- Design:

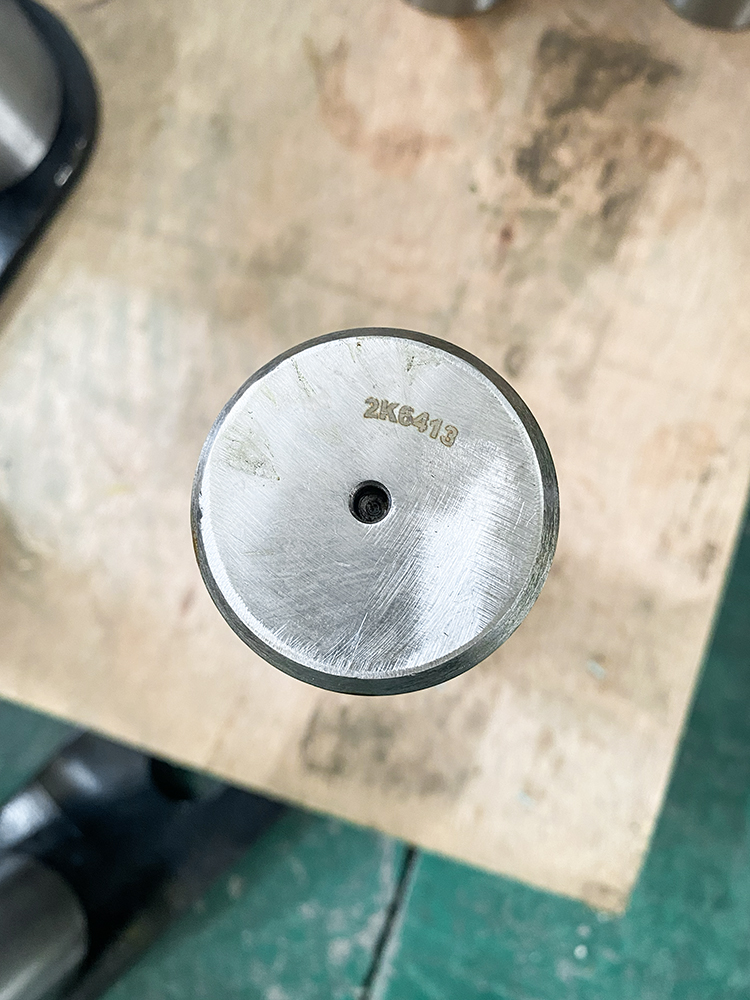

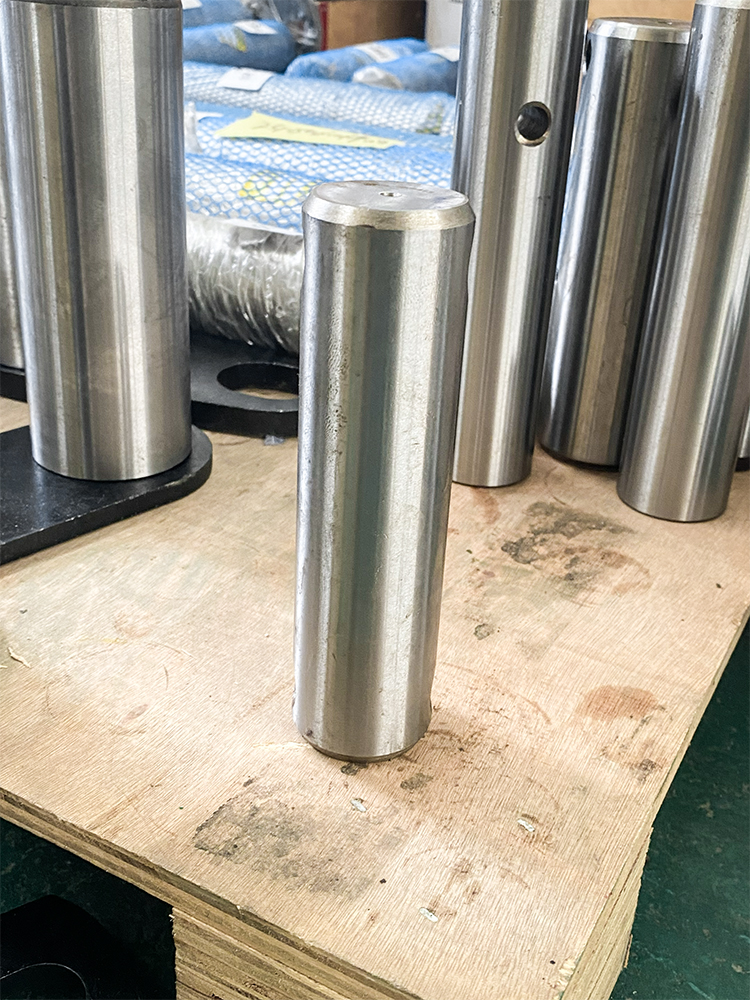

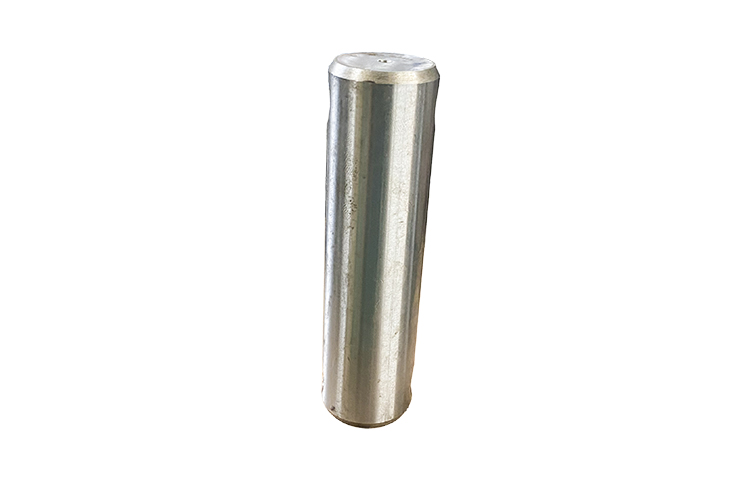

- 2K6413 Pin: A straight, cylindrical pin with a hole for cotter pin insertion, engineered to OEM specifications for precise fitment and secure attachment of ripper tooth tips.
- 3B5325 Cotter Pins: Standard cotter pins with a split design, allowing easy insertion and secure locking of the main pin. Typically supplied as a pair to ensure proper fastening.
- Compatibility: Compatible with Caterpillar equipment using the 6Y0309 ripper tooth tip, including track-type tractors (e.g., D4D, D4E, D5, D6C, D6D, D7F, D7G), motor graders (e.g., 12G, 130G, 140G, 14G), track loaders (e.g., 941, 951, 955, 963, 977), and rippers with shank 9J6586. Typically used in ripper assemblies for securing tooth tips. Exact model compatibility should be verified with the equipment’s serial number via CAT SIS.
- Dimensions: Specific dimensions are not publicly detailed, but the 2K6413 pin is designed to fit the 6Y0309 ripper tooth tip, and the 3B5325 cotter pins are sized to secure the pin’s retention hole. Approximate package dimensions for the set: 6 x 4 x 2 in (15.2 x 10.2 x 5.1 cm).
Benefits
- Enhanced Durability: The high-grade steel construction of the 2K6413 pin and corrosion-resistant 3B5325 cotter pins ensure long-lasting performance in abrasive and high-impact environments.
- Reliable Performance: The pin set securely fastens ripper tooth tips, preventing detachment during heavy ripping tasks, thus maintaining operational efficiency and reducing downtime.
- Cost-Effective: Offers a high-quality aftermarket or OEM alternative, providing an economical solution for maintaining ripper assemblies without replacing entire shanks or teeth. No core charge required.
- Ease of Installation: The straightforward design of the pin and cotter pins allows for quick and easy installation and removal, minimizing maintenance time.
Applications
The Pin Set 2K6413 & 3B5325 is tailored for use in Caterpillar equipment, specifically suited for:
- Track-Type Tractors: D4D, D4E, D5, D6C, D6D, D7F, D7G.
- Motor Graders: 12G, 130G, 140G, 14G.
- Track Loaders: 941, 951, 955, 963, 977.
- Rippers: Assemblies using the 6Y0309 ripper tooth tip and 9J6586 shank.
- Industries: Mining, construction, and quarrying, where Caterpillar equipment is deployed for tasks such as ripping hard ground, rock extraction, and material preparation.
Technical Specifications
- Part Numbers:
- 2K6413 (pin, replaces OEM 2K6413).
- 3B5325 (cotter pins, replaces OEM 3B5325, typically supplied as a pair).
- Unit of Measure: Set (1 pin, 2 cotter pins).
- Condition: New aftermarket or genuine OEM.
- Weight: Approximately 0.5-1 lb (0.23-0.45 kg) for the set, based on similar pin sets.
Note: While this description provides general information, specific details such as size, weight and exact material may vary by manufacturer and specific application. To obtain the most accurate and up-to-date information, it is recommended to consult a qualified parts supplier such as DIRON PARTS.
