Basic Info.
| Part no. | Cylinder Head 8N6005 | Material | Iron |
| Type | Cylinder Head | Weight | 109KG |
| Engine No. | D8K | Transport Package | Wooden Box |
| Trademark | DIRON | Origin | Luoyang City |
| HS Code | 84099991 | Production Capacity | 5000PCS/Year |
Product Details
- Item Model：8N6005
- Date First Listed：2024/12/02
- Manufacturer：Diron Parts
Product Description
- Part Number：Cylinder Head 8N6005
- Part Type：Cylinder Head
- Compatible Equipment：Replacement part Cylinder Head 8N6005 for CAT D8K

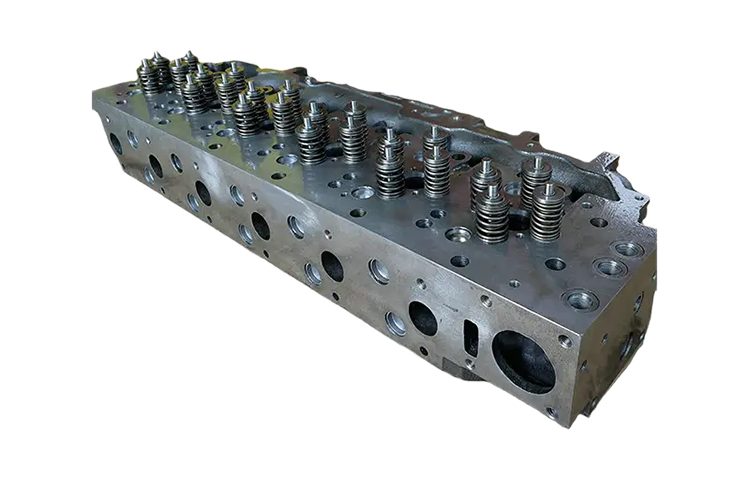

Product Introduction: Cylinder Head 8N6005 for Caterpillar D8K Tractor (D342 Diesel Engine)
Overview
The Cylinder Head 8N6005 is a precision-engineered component designed for the Caterpillar D342 diesel engine, which powers the Caterpillar D8K track-type tractor. This part is critical for sealing the combustion chamber, housing the valves, and facilitating efficient airflow and fuel combustion, ensuring optimal engine performance and reliability in heavy-duty applications such as dozing and earthmoving. Available as a new aftermarket, remanufactured, or genuine OEM part, it provides a robust solution for engine maintenance.
Key Features
- Material: Constructed from high-grade cast iron, designed to withstand extreme temperatures, pressures, and mechanical stresses in the D342 diesel engine. Features precision-machined surfaces for optimal sealing, heat dissipation, and durability.
- Design: Engineered to OEM specifications for precise fitment and performance in counterbore block D342 engines. Includes valve seats, guides, and ports optimized for efficient combustion and exhaust flow. Available as a bare head (with valve guides and seats) or loaded assembly with pre-installed valves, springs, premium valve stem seals, retainers, and injector cups. Incorporates advanced cooling passages to manage engine temperature effectively.
- Compatibility: Compatible with Caterpillar D342 diesel engines in:
- Track-Type Tractors: D8K (e.g., serial numbers 66V02085-UP for power shift, 76V00505-UP for direct drive, 77V05006-UP for power shift), D8H (e.g., 36A05329-UP, 46A24433-UP).
- Pipelayers: 583, 583K (e.g., 78V00535-UP).
- Marine Applications: D342 marine engines (e.g., 50B01025-UP).
- Engines: D342 (inline 6-cylinder, 20.4L, 2-valve per cylinder configuration, diesel, precombustion chamber), with specific serial numbers (e.g., 49B01091-UP for D342 engine). The 8N6005 is specific to counterbore block engines, similar to 8N6004. Exact compatibility must be verified using the engine’s serial number and block type (counterbore) via CAT SIS, as per Caterpillar’s policy.
- Cross-References: 8N6005, 8N-6005, CA8N6005, 8N6004, 8N6000 (casting number), 7N6357, 2473369, CA2473369, 247-3369, 8H5980, 8N4229. The 8N6005 is interchangeable with 8N6004 and other counterbore heads for D342 engines, sharing the 8N6000 casting number with heads like 8N6001 (spacer plate) and 8N6004 (counterbore).
- Dimensions: Specific dimensions are not publicly detailed, but approximate measurements for similar 3400-series heads are 1028.7 mm (length), 393.7 mm (width), and 292.1 mm (height). D342 heads are likely comparable due to engine size. Typical bare cylinder heads weigh approximately 200-250 lbs (91-113 kg), with loaded assemblies heavier due to pre-installed components.
